HR Mirror R ~99.9% @ 600–750 nm for He-Ne, Ruby & Red Diode Lasers — Ø25 × 5 mm
Broadband high-reflectivity dielectric mirror for visible red laser resonators, optical cavities, beam steering, alignment, interferometry and laboratory prototyping.
Indicative shipping
| European Union | EUR 12 |
| United States | USD 60 |
| Rest of the world | Email me |
Product Description
Professional high-reflectivity HR mirror with a broadband dielectric coating optimized for the 600–750 nm spectral range. This makes it useful for several visible red laser sources, including He-Ne lasers at 632.8 nm, ruby lasers at 694 nm and red diode laser optical setups.
The mirror is fabricated on a Schott BK7 optical glass substrate, with a flat/plano geometry and an optically polished second face. It can be used as a cavity high reflector, beam-folding mirror, alignment mirror or general laboratory high-reflectivity optic in the red spectral region.
- Broadband dielectric HR coating for 600–750 nm
- Suitable for He-Ne, ruby and visible red diode laser optics
- Useful in optical resonators, beam steering and precision alignment setups
- 25 mm diameter, 5 mm thick BK7 optical substrate
Technical Specifications

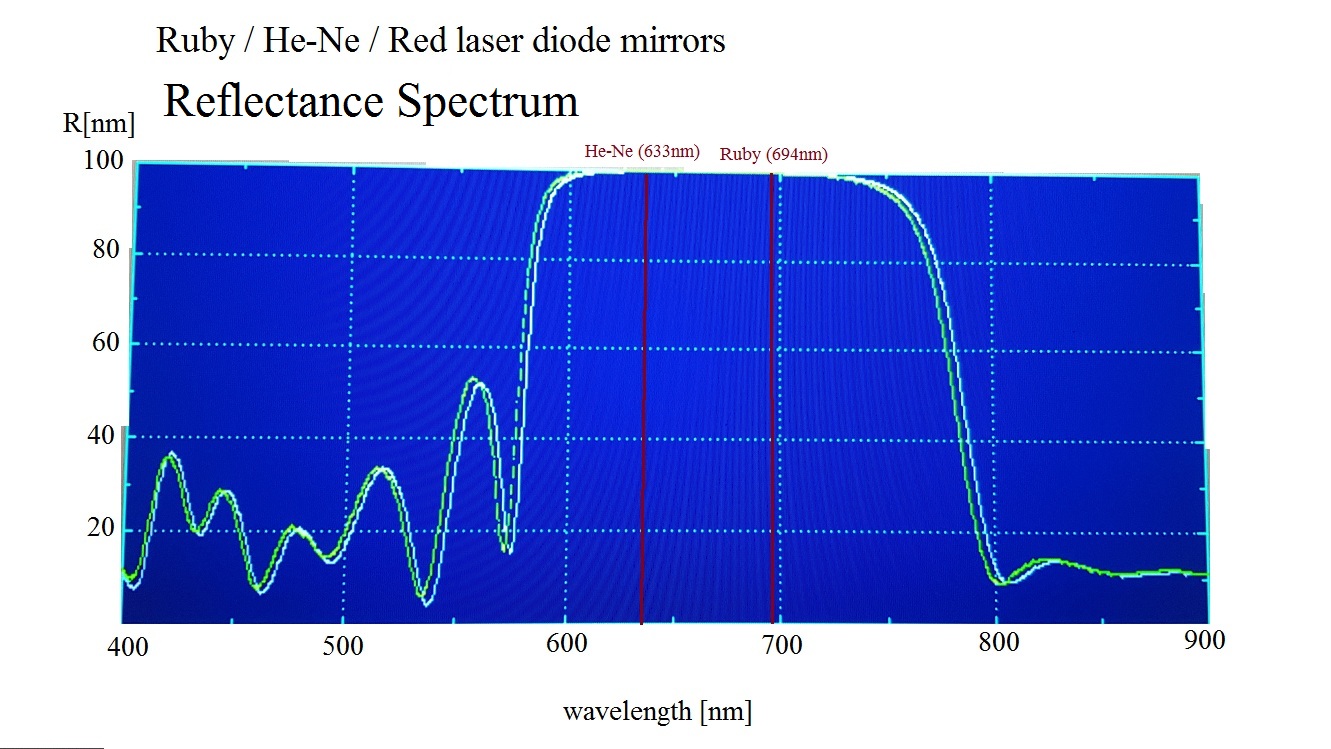

| Spectral range | 600–750 nm broadband |
| Reflectivity | R ~99.9% average |
| Typical wavelengths | 632.8 nm He-Ne, 694 nm Ruby, visible red diode lasers |
| Diameter | 25 mm |
| Thickness | 5 mm |
| Substrate | BK7 — Schott optical glass |
| Second face | Optical-grade polished |
| Geometry | Flat / plano |
| Coating type | Dielectric PVD high reflector |
Typical Use
- High-reflector mirror for visible red laser resonators and optical cavities
- Ruby laser HR mirror for 694 nm experimental cavity setups
- He-Ne laser and red laser beam steering or folding mirror
- Interferometry, optical benches and precision metrology experiments
- Laboratory prototyping, alignment systems and educational laser optics
Ordering Notes
The displayed price is for one mirror and does not include shipping. Please contact us before payment so we can confirm current availability, exact quantity, shipping cost and combined shipping options.
