HR IR Mirror (750-900nm) @45° & He-Ne Laser Beam Splitter (R/T=40/60) - 93x66mm
EUR 45.00
+Shipping
| European Union | EUR 12 |
| Non-EU Europe | EUR 20 |
| North America | USD 60 |
| Rest of the world | Email me |
Contact:
opticparts@gmail.com
Copied to Clipboard!
How to order: Please email your shipping country, postal code and desired quantity. Availability and final shipping cost will be confirmed before payment.
Payment can be made via PayPal or bank transfer (Revolut and Wise accounts available).
Optical Versatility
This large, oval-shaped dielectric mirror is a highly specialized optical component that offers dual-functionality based on the Angle of Incidence (AOI):

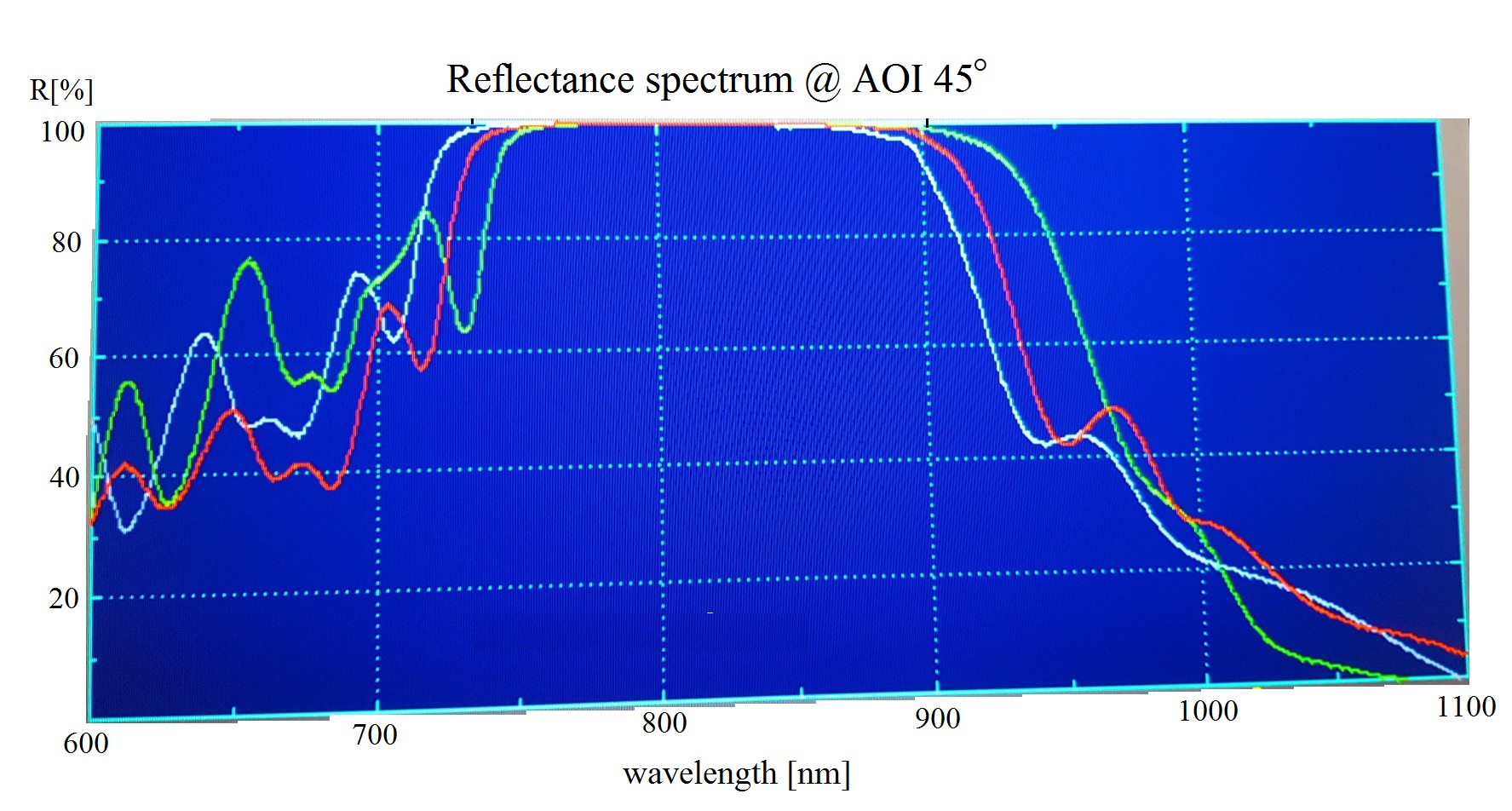

1. At 45° Incidence:
- Acts as a High Reflectivity (HR) mirror for the IR range (750 - 900 nm), with R > 99%.
- Acts as a Beam Splitter for He-Ne lasers (632.8 nm) with a Ratio R/T = 40/60.
2. At 0° (Normal) Incidence:
- Acts as a High Reflectivity (HR) mirror for 840 - 1060 nm.
The mirror features a multi-layer dielectric coating and a precision oval shape with a professional mounting bevel, making it ideal for large-aperture IR applications or beam steering setups.
Technical Specifications
| Dimensions | 93 x 66 mm |
| Shape | Oval (with bevel) |
| Coating Type | Multi-layer Dielectric |
| HR Range (45°) | 750 – 900 nm |
| HR Range (0°) | 840 – 1060 nm |
| Beam Splitter (45°) | He-Ne (632.8 nm) |
| R/T Ratio @He-Ne | 40 / 60 |
| Reflectivity (HR) | > 99% |
