Ruby Laser Output Coupler R ≈ 74% @ 694 nm, Ø25 × 4.5 mm
Flat dielectric output coupler mirror for Ruby laser resonators, with approximately 74% reflectivity at 694 nm, BK7 optical glass substrate and AR coating on the second face.
Indicative shipping
| European Union | EUR 12 |
| United States | USD 60 |
| Rest of the world | Email me |
Product Description

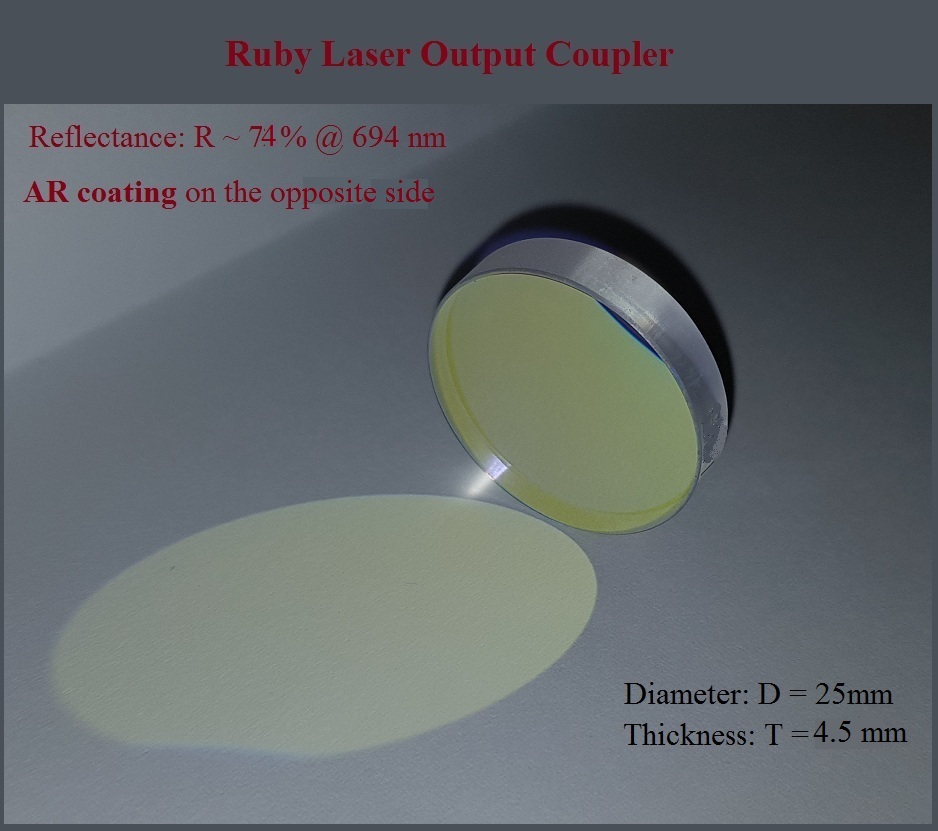

High-precision output coupler (OC) mirror for Ruby laser resonant cavities operating at 694 nm. The coating provides approximately 74% reflectivity at the Ruby laser wavelength.
The lower reflectivity compared with high-reflectivity cavity mirrors allows stronger output extraction from the resonator. The rear surface has an anti-reflection (AR) coating to reduce internal losses and unwanted ghost reflections.
The mirror is made on a Schott BK7 optical glass substrate and is suitable for experimental Ruby laser systems, pulsed laser resonators and laboratory optical setups.
Technical Specifications
| Laser wavelength | 694 nm |

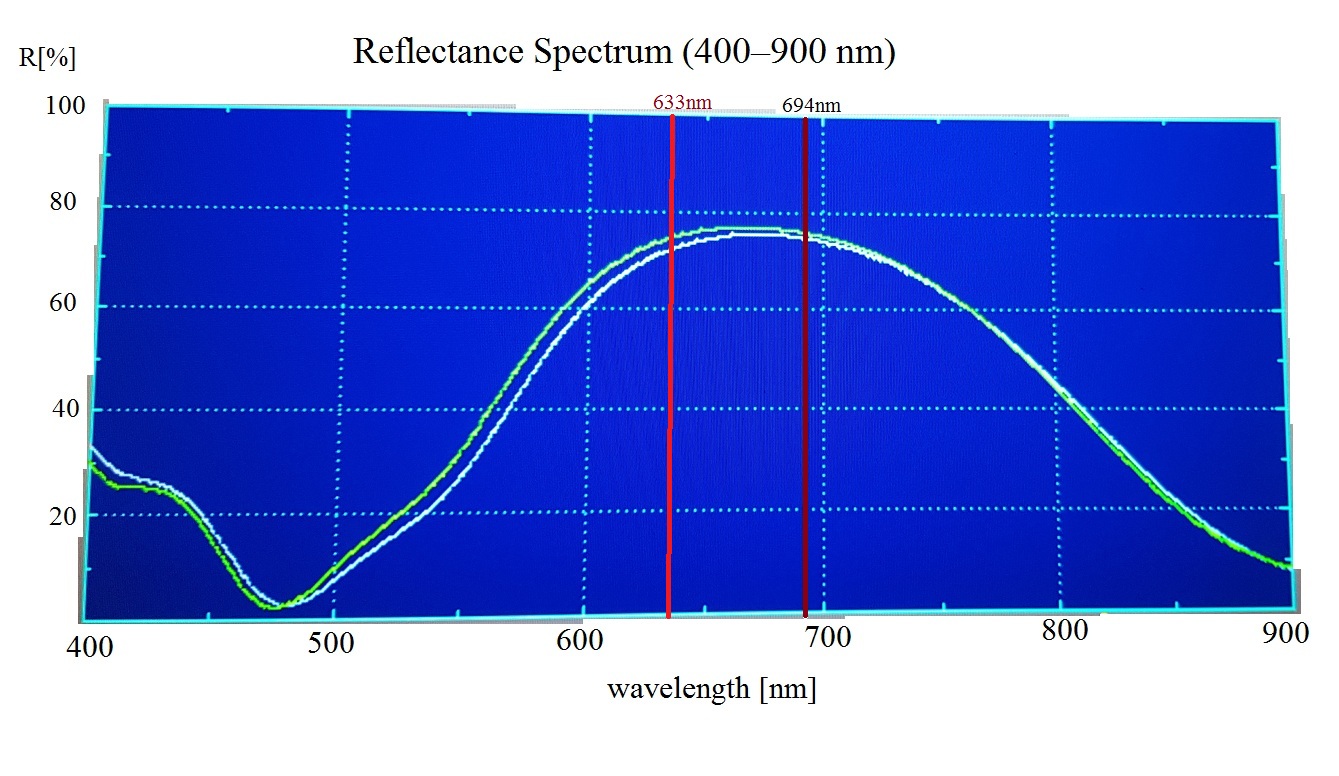

| Reflectivity | R ~ 74% (±2%) @ 694 nm |
| Transmission | T ~ 26% (±2%) @ 694 nm |
| Diameter | 25 mm |
| Thickness | 4.5 mm |
| Substrate | BK7 - Schott optical glass |
| Geometry | Flat / Plano |
| Front coating | Dielectric OC coating, R ~ 74% @ 694 nm |
| Rear coating | AR coating on the second face |

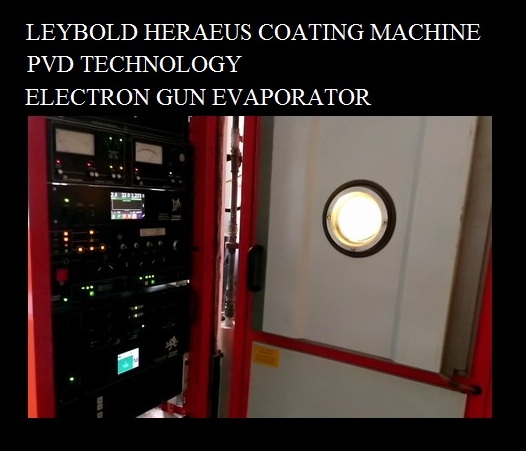

| Coating technology | Dielectric PVD |
Typical Use
- Output coupler for pulsed Ruby laser resonators
- Experimental Ruby laser cavity optimization
- Optical resonator testing at 694 nm
- Fabry-Perot / partial reflector experiments
- Laboratory optics, beam splitting and research setups in the red spectral region
Ordering Notes
- Price shown excludes shipping.
- Shipping cost depends on destination and quantity.
- Please email before payment to confirm availability and final total.
- Payment can be made by PayPal, Revolut or bank transfer after confirmation.
