Ruby Laser Resonant Cavity Mirrors: HR R~99.9% + OC R~85%, 694 nm, Ø25 mm BK7
Matched dielectric mirror pair for ruby laser resonators at 694 nm: one high reflector and one output coupler, suitable for pulsed free-running ruby laser cavity experiments and replacement optical setups.
Indicative shipping
| European Union | EUR 12 |
| United States | USD 60 |
| Rest of the world | Email me |
Product Description
Matched pair of high-reflectivity dielectric mirrors for Ruby Laser (694 nm) resonant cavities. The set includes one HR mirror and one OC output coupler, intended for high-energy pulsed operation in free-running ruby laser configurations.
Both optics are manufactured on Schott BK7 optical glass substrates. The dielectric PVD coatings are optimized around the ruby laser emission wavelength and are suitable for experimental resonators, replacement cavities and laboratory optical setups.
- HR mirror: high reflector, R ~ 99.9% @ 694 nm
- OC mirror: output coupler, R ~ 85% @ 694 nm
- Application: pulsed free-running ruby laser resonant cavities
- Geometry: flat / plano mirrors, 25 mm diameter
Technical Specifications
| Laser wavelength | 694 nm, ruby laser line |
| Product type | HR + OC resonator mirror pair |
| Substrate material | BK7 - Schott optical glass |

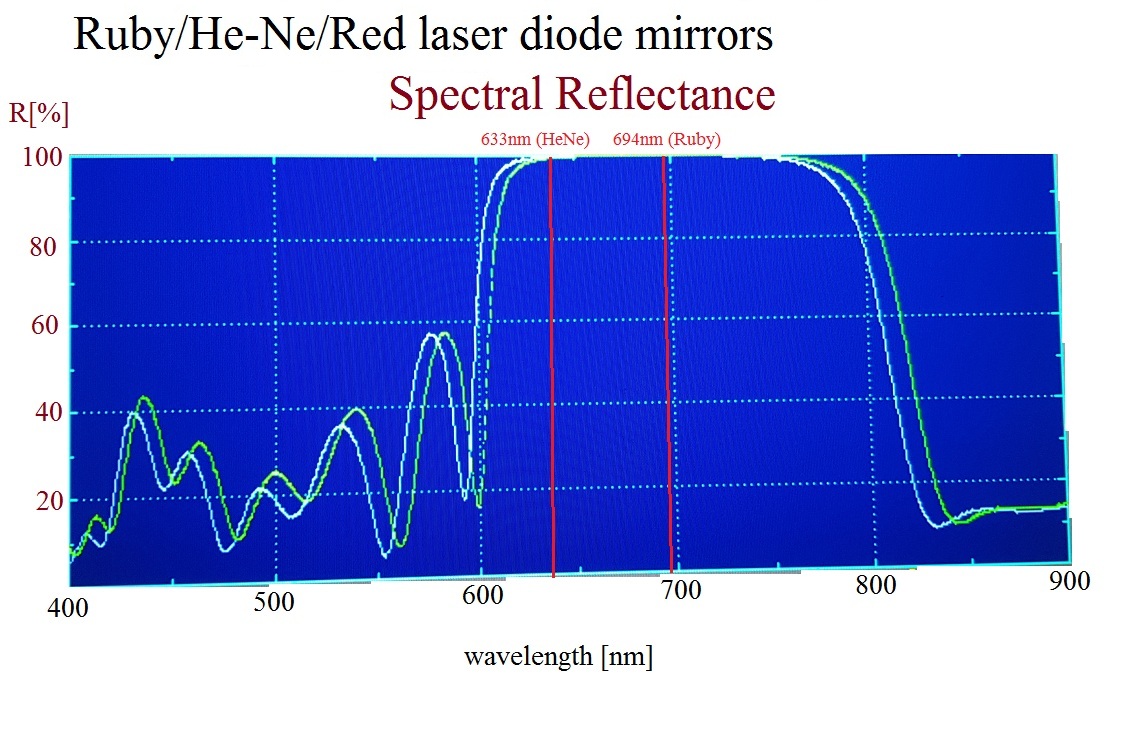

| HR reflectivity | R ~ 99.9% @ 694 nm |

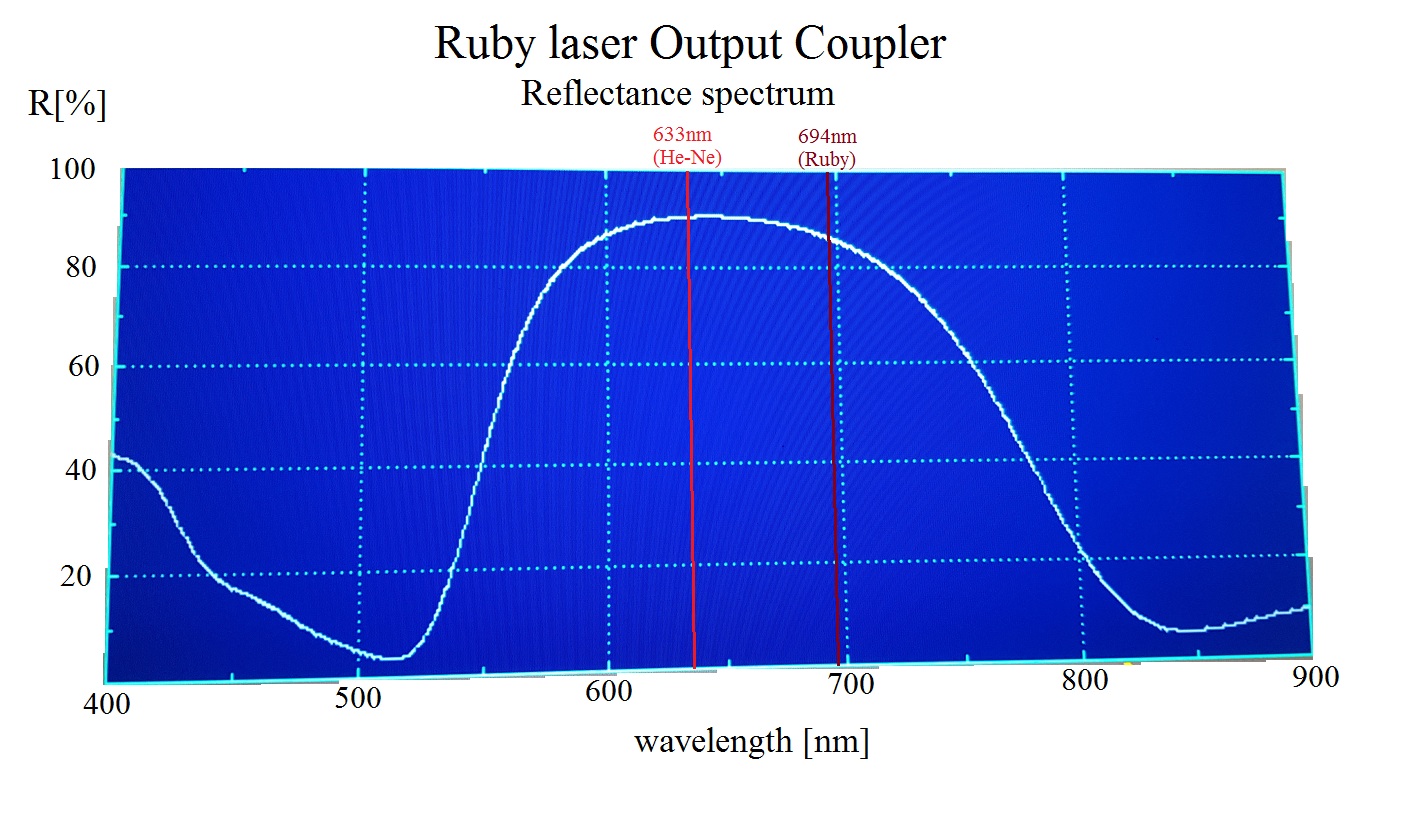

| OC reflectivity | R ~ 85% (±2%) @ 694 nm |
| Diameter | 25 mm, both mirrors |
| Thickness | HR: 5 mm | OC: 8 mm |
| Surface geometry | Flat / plano |
| Coating technology | Dielectric PVD optical coating |
Typical Use
This mirror pair is designed for users building, repairing or experimenting with ruby laser resonators. The approximately 85% output coupler reflectivity is generally appropriate for free-running pulsed ruby laser operation, where a moderate output coupling ratio can help extract energy while maintaining cavity feedback.
- Ruby laser cavity experiments at 694 nm
- Free-running pulsed ruby laser resonators
- Laboratory laser optics replacement parts
- Educational and research laser setups
Ordering Notes
Shipping prices are indicative and may vary depending on destination, parcel size, courier availability and combined orders. Please contact us before payment so the final total can be confirmed.
These are precision optical components intended for qualified users. Final performance depends on the complete laser system: ruby rod, pump source, cavity alignment, thermal loading and operating regime.
