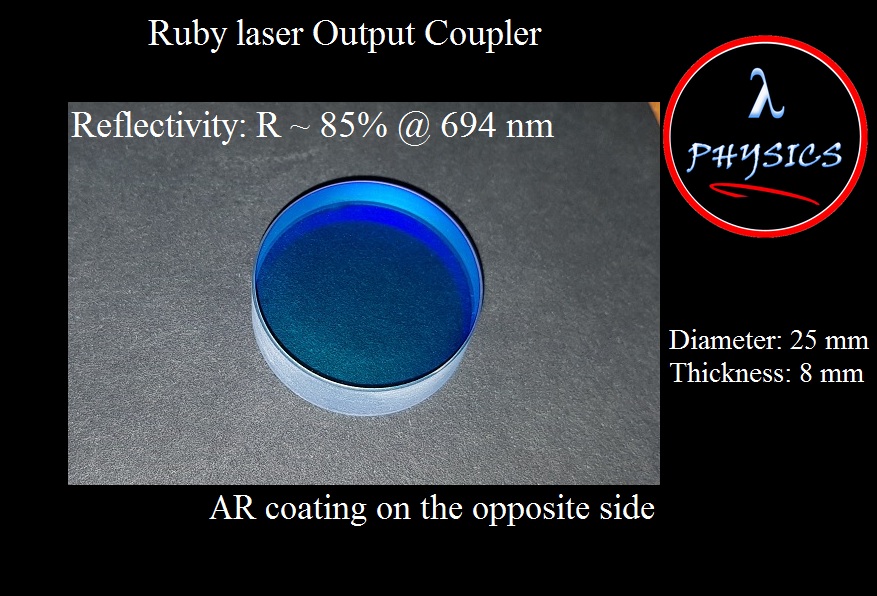

Ruby Laser Output Coupler Mirror — R ≈ 85% @ 694 nm, Ø25 × 8 mm, BK7
Indicative shipping
| European Union | EUR 12 |
| United States | USD 60 |
| Rest of the world | Email me |
Product Description
High-quality ruby laser output coupler (OC) mirror designed for 694 nm ruby laser resonators. With approximately 85% reflectivity and 15% transmission at 694 nm, this mirror is especially suitable for pulsed free-running ruby laser operation.
The mirror is built on a precision Schott BK7 optical glass substrate. The output-coupler coating is a dielectric PVD multilayer, while the second face has an antireflection (AR) coating to reduce secondary reflections and internal interference.
- Output coupler for ruby laser cavities at 694 nm
- R ~85% / T ~15% balance for free-running pulsed operation
- 25 mm diameter BK7 substrate, 8 mm thickness
- AR coating on the second face
- Suitable for laboratory setups, laser repair, restoration and experimental resonators
Technical Specifications
| Laser type | Ruby laser |
| Wavelength | 694 nm |
| Mirror type | Output Coupler (OC) |

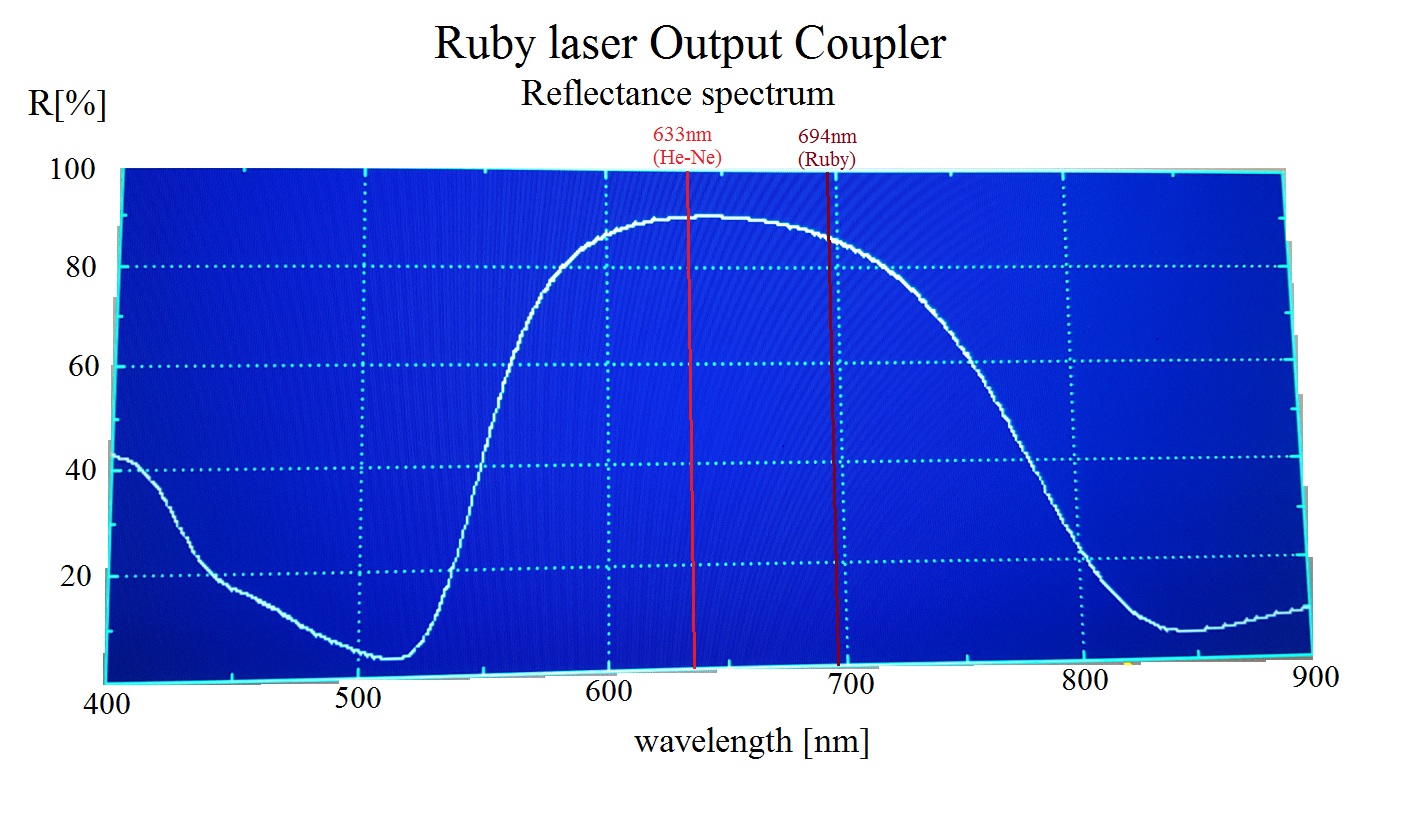

| Reflectivity | R ~ 85% (±2%) @ 694 nm |
| Transmission | T ~ 15% (±2%) @ 694 nm |
| AR Coating | Yes, on second face |
| Substrate | BK7 - Schott optical glass |
| Diameter | 25 mm |
| Thickness | 8 mm |
| Geometry | Flat / plano |
| Coating Technology | Dielectric PVD |
Typical Use
This component can be used as the output mirror in a ruby laser resonant cavity. The 85% reflectivity level is intended for systems where a moderate output coupling is required, particularly in pulsed free-running operation.
- Ruby laser resonator output coupling at 694 nm
- Replacement or spare OC mirror for experimental ruby laser systems
- Educational and research laser optics setups
- Optical cavity testing and prototype resonator assemblies
Ordering Notes
The listed price does not include shipping. Shipping depends on destination, parcel size and combined orders. Please contact us before payment so we can confirm availability and the final delivered cost.
PayPal is available as a payment method, but direct checkout is intentionally not used on this page because shipping cost differs by region.
